185℃ 熨烫 RFID 洗衣标签,适用于酒店洗衣管理 TT7010s

Engineered for Extreme Linen Lifecycle Management in Healthcare & Hospitality

The TT7010s is a premium, textile-based UHF RFID tag built to survive the most demanding industrial laundry environments. With a tested endurance of over 200 wash cycles and resistance to high-pressure extraction (60 bar), high temperatures (90°C wash, 185°C ironing), and harsh chemicals, it delivers unparalleled longevity and ROI for linen rental companies, five-star hotels, and hospital central sterile services. Its non-metallic, needle-detection-safe construction ensures seamless integration into existing linen seams without triggering security scanners.

Technical Differentiation

✅ Unmatched Industrial Durability
Engineered to withstand industrial wash cycles at 90°C, high-pressure extraction (60 bar), chemical exposure (bleach, alkali), and medical autoclave sterilization (135°C). Guarantees 200+ uses, maximizing linen life and ROI.

✅ Needle-Detection Safe & Non-Magnetic
Passes through needle detectors without setting off alarms—a critical advantage over metal-dome tags for healthcare linen and uniform management. Eliminates downtime and sorting errors.

✅ Superior Global Read Performance
Features the high-sensitivity NXP UCODE 9xe chip, delivering industry-leading read ranges up to 14 meters with fixed readers, enabling high-speed sorting and inventory in large laundry facilities.

✅ Proven in Mission-Critical Environments
The go-to solution for healthcare infection controlhotel linen tracking, and rental textile management, providing full visibility from soiled collection to clean distribution.

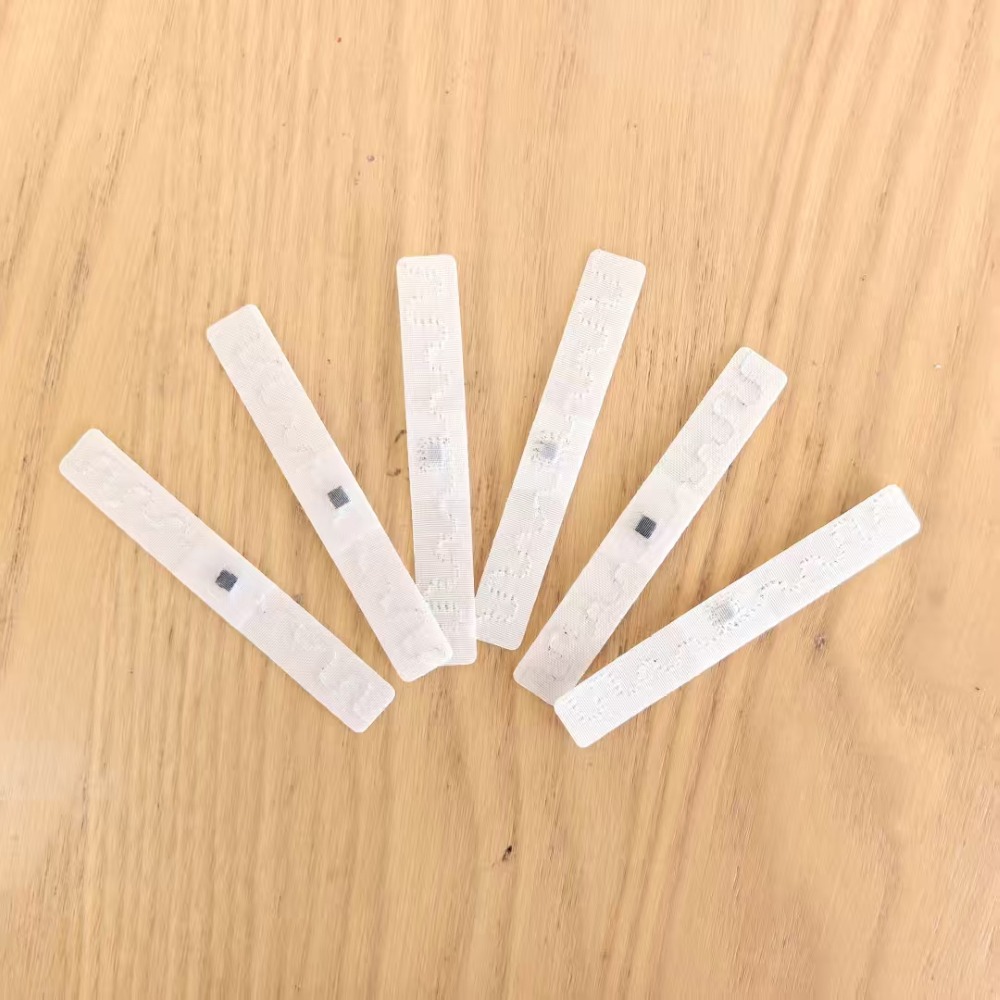

外观及结构图



物理参数



规格 参数
型号 TT7010s
材质 编织聚酯纤维织物,柔性天线
尺寸(长×宽) 70×15毫米
厚度 1.4 毫米(芯片面积),0.65 毫米(标签主体)
重量 0.48克
安装 缝入下摆或安全袋



RFID 性能和耐用性



规格 参数
协议 EPC   ISO 18000-6C
IC 恩智浦 UCODE 9
存储 EPC:128 位(读/写)
存储 TID:96 位(唯一,只读)
频率范围 860 – 960 MHz(全球运营)
读取范围(固定读取器) > 14 米(美国和欧盟)
读取范围(手持式) > 13.5 米(美国),> 9.5 米(欧盟)
数据保留 > 20年
写入耐久性 10万次循环
洗涤周期保修 200 次循环或 3 年



包装和订购

范围 细节
标准套餐 单个单元(散装卷可选)
示例政策 提供免费评估样品
交货时间(标准) 10-15天
认证 符合 ROHS、REACH 要求



阅读性能测试
